Short Pre-Travel Distance And Quick Actuation
The Kailh Choc V2 Low Profile Switch is a new version of the Kailh low profile switch series that features a short pre-travel distance (1.3mm±0.30mm) and quick actuation to deliver a fast and comfortable typing experience. This switch is the perfect option for low-profile switch enthusiasts who want to build a low-profile keyboard.
Factory Pre-lubed
The Super Speed switches are factory pre-lubed to ensure their smoothness and endurance and provide a smoother and more comfortable typing experience.
Ultra-slim Design
The switch body thickness is only 8.6mm thanks to the low-profile keyboard design.
Waterproof & Dustproof Stem
The stem has a circlular dust wall design to give you more keycap options than the older version and protection from water and dust.
Waterproof & Dustproof Stem
The stem has a circlular dust wall design to give you more keycap options than the older version and protection from water and dust.
Linear, Tactile, And Clicky
It is available in linear, tactile, and clicky. Each will offer you a different typing experience.
Product Structure
Technical Data
Red Switch
| Type | Linear |
|---|---|
| Operation Force | 43±10 gf |
| Pre-travel | 1.3±0.3 mm |
| Return Force | 15 gf |
| Tactile Force | - |
| Total Travel | 3.2±0.25 mm |
| Sound Level | Low |
| Operation Life | Up to 50M cycles |
| Suitable For | Gaming/office |

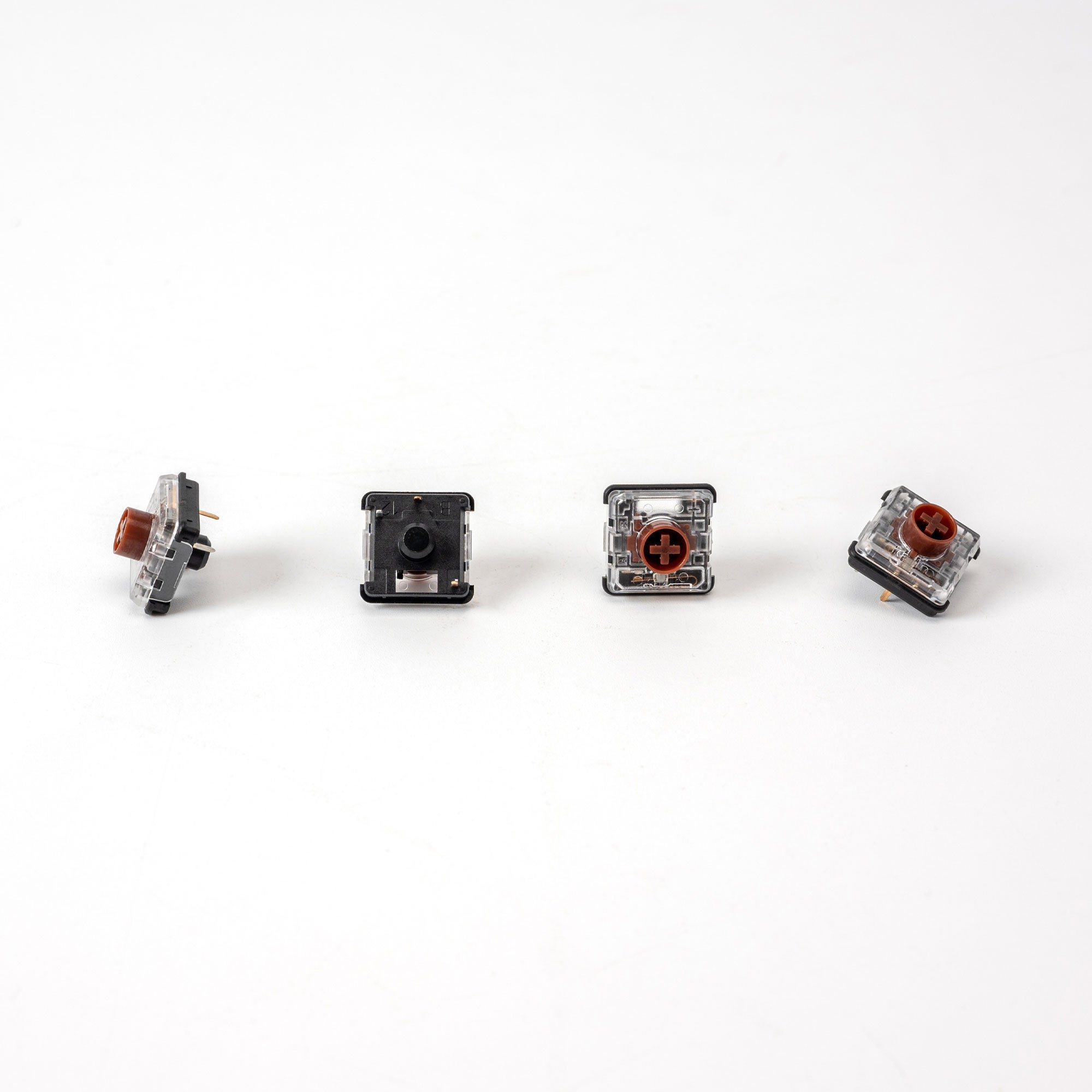

Brown Switch
| Type | Tactile |
|---|---|
| Operation Force | 45±10 gf |
| Pre-travel | 1.3±0.3 mm |
| Return Force | 15 gf |
| Tactile Force | 55±10 gf |
| Total Travel | 3.2±0.25 mm |
| Sound Level | Medium |
| Operation Life | Up to 50M cycles |
| Suitable For | Midway gaming/office |

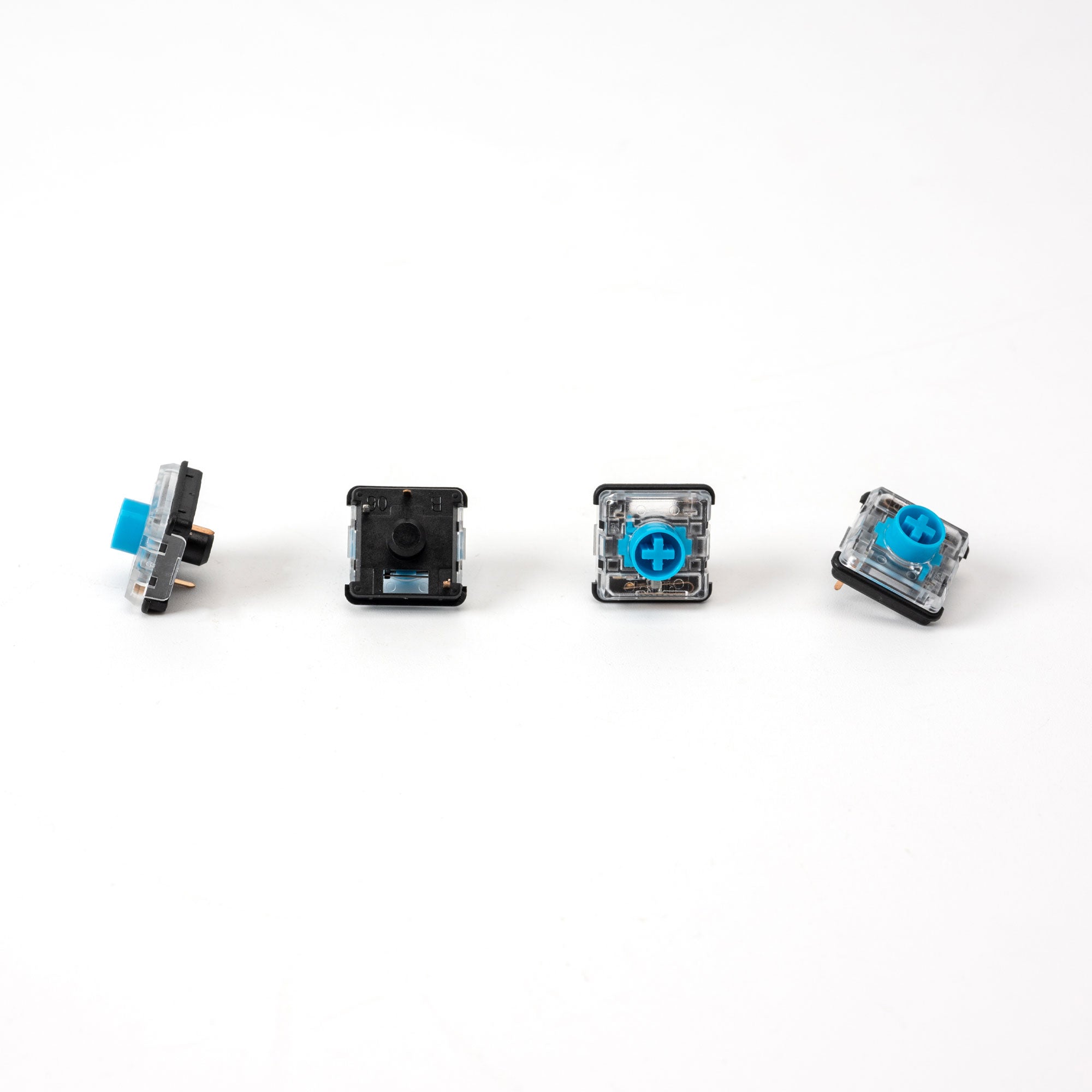

Blue Switch
| Type | Clicky |
|---|---|
| Operation Force | 48±13 gf |
| Pre-travel | 1.3±0.3 mm |
| Return Force | 15 gf |
| Tactile Force | 55±10 gf |
| Total Travel | 3.2±0.25 mm |
| Sound Level | Loud |
| Operation Life | Up to 50M cycles |
| Suitable For | Typist |
Product Spec
| Product Name | Kailh Choc V2 Low Profile Switch |
|---|---|
| Stem | POM |
| Top Housing | PC |
| Bottom Housing | Nylon PA66 |
| Contact | Composite gold |
| Spring | Spring steel |
| Pins | - |
| Factory Pre-lubed | No |
| SMD LED Support | Yes |
